Linear Discriminant Analysis (LDA)
LDA is supervised learning dimensionality reduction technique and aims to maximize the distance between the mean of each class and minimize the spreading within the class itself. LDA uses therefore within classes and between classes as measures. This is a good choice because maximizing the distance between the means of each class when projecting the data in a lower-dimensional space can lead to better classification results.
When using LDA, is assumed that the input data follows a Gaussian Distribution (like in this case), therefore applying LDA to not Gaussian data can possibly lead to poor classification results.

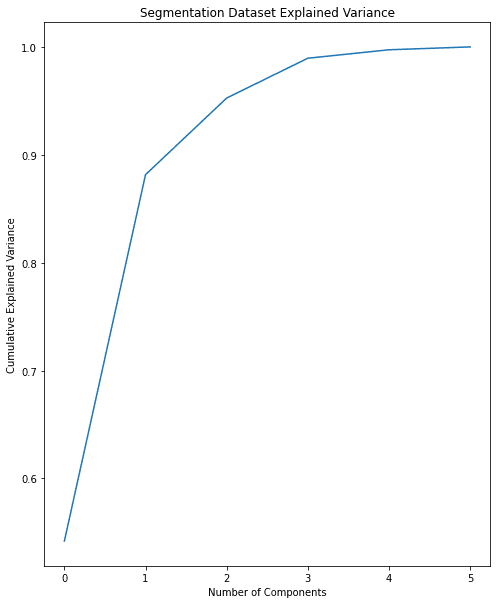

For our dataset, again it is vital to determine the number of components needed for LDA. We will take the help of cumulative explained variance ratio as a function of the number of components.

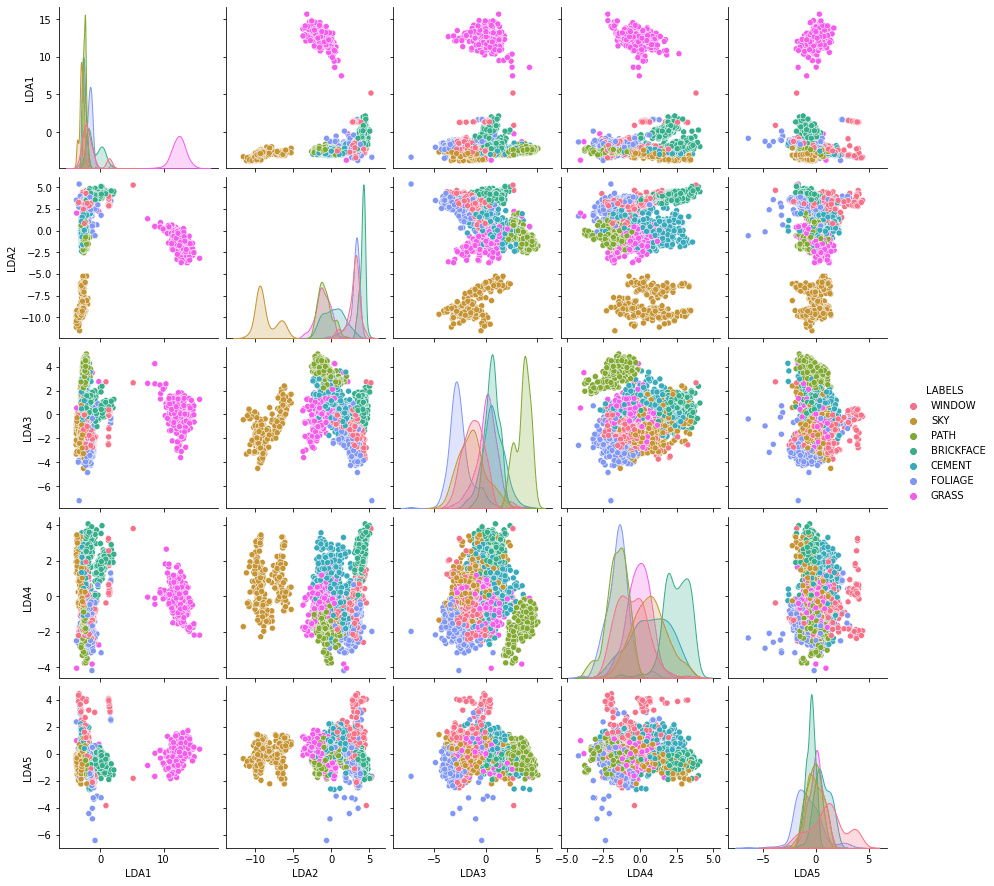

applylda(Xtrain, Xtest, Ytrain, Ytest, actual_labels=ACTUAL_LABELS)
LDA1 LDA2 LDA3 LDA4 LDA5 LABELS
213 -2.626145 -6.237686 0.610770 -0.004843 0.225692 SKY
1 -2.809265 -6.631246 0.413503 0.563860 -0.057595 SKY
1783 11.647377 -0.760909 0.383086 0.016993 0.037919 GRASS
2046 -1.947659 3.698630 1.015154 2.905195 -0.521981 BRICKFACE
721 10.936303 -1.286314 -1.353032 1.078538 -0.091325 GRASS
Time Elapsed: 3.824120516000022 secs
Classification Report after applying Random Forest:
----------------------------------------------------
precision recall f1-score support
0 1.00 1.00 1.00 30
1 1.00 1.00 1.00 30
2 0.94 1.00 0.97 30
3 1.00 1.00 1.00 30
4 1.00 1.00 1.00 30
5 1.00 1.00 1.00 30
6 1.00 0.93 0.97 30
accuracy 0.99 210
macro avg 0.99 0.99 0.99 210
weighted avg 0.99 0.99 0.99 210The first 5 components (0 to 4) is enough to explain the 100% variance in dataset. Hence, after applying LDA and Random Forest we can see evaluation results. The evaluation performance is better than PCA because LDA gives similar performance but with reduced number of components.
PCA vs LDA

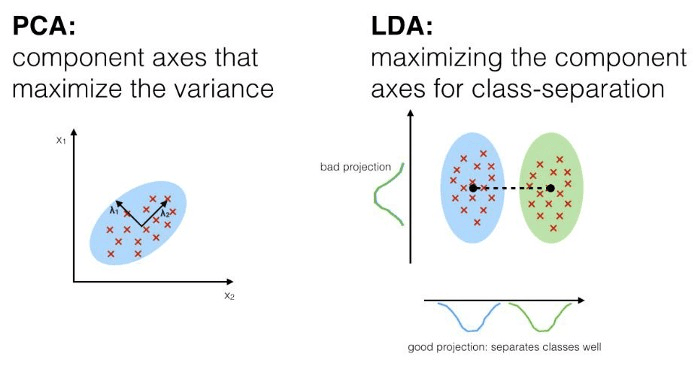

Both Linear Discriminant Analysis (LDA) and Principal Component Analysis (PCA) are linear transformation techniques that are commonly used for dimensionality reduction. PCA can be described as an 'unsupervised' algorithm, since it 'ignores' class labels and its goal is to find the directions (the so-called principal components) that maximize the variance in a dataset. In contrast to PCA, LDA is 'supervised' and computes the directions ('linear discriminants') that will represent the axes that that maximize the separation between multiple classes.
Although it might sound intuitive that LDA is superior to PCA for a multi-class classification task where the class labels are known, this might not always the case.
For example, comparisons between classification accuracies for image recognition after using PCA or LDA show that PCA tends to outperform LDA if the number of samples per class is relatively small (PCA vs. LDA, A.M. Martinez et al., 2001). In practice, it is also not uncommon to use both LDA and PCA in combination: E.g., PCA for dimensionality reduction followed by an LDA.
Using sklearn for LDA
Linear Discriminant Analysis, or LDA for short, is a predictive modeling algorithm for multi-class classification. It can also be used as a dimensionality reduction technique, providing a projection of a training dataset that best separates the examples by their assigned class.
# test classification dataset
from sklearn.datasets import make_classification
# define dataset
X, y = make_classification(n_samples=1000, n_features=20, n_informative=15, n_redundant=5, random_state=7, n_classes=10)
# summarize the dataset
print(X.shape, y.shape)(1000, 20) (1000,)Next, we can use dimensionality reduction on this dataset while fitting a naive Bayes model. We will use a Pipeline where the first step performs the LDA transform and selects the five most important dimensions or components, then fits a Naive Bayes model on these features. We don’t need to standardize the variables on this dataset, as all variables have the same scale by design.
The pipeline will be evaluated using repeated stratified cross-validation with three repeats and 10 folds per repeat. Performance is presented as the mean classification accuracy.
# evaluate lda with naive bayes algorithm for classification
from numpy import mean
from numpy import std
from sklearn.datasets import make_classification
from sklearn.model_selection import cross_val_score
from sklearn.model_selection import RepeatedStratifiedKFold
from sklearn.pipeline import Pipeline
from sklearn.discriminant_analysis import LinearDiscriminantAnalysis
from sklearn.naive_bayes import GaussianNB
# define dataset
X, y = make_classification(n_samples=1000, n_features=20, n_informative=15, n_redundant=5, random_state=7, n_classes=10)
# define the pipeline
steps = [('lda', LinearDiscriminantAnalysis(n_components=5)), ('m', GaussianNB())]
model = Pipeline(steps=steps)
# evaluate model
cv = RepeatedStratifiedKFold(n_splits=10, n_repeats=3, random_state=1)
n_scores = cross_val_score(model, X, y, scoring='accuracy', cv=cv, n_jobs=-1, error_score='raise')
# report performance
print('Accuracy: %.3f (%.3f)' % (mean(n_scores), std(n_scores)))Accuracy: 0.314 (0.049)In this case, we can see that the LDA transform with naive bayes achieved a performance of about . How do we know 5 input features is best? A better approach is to evaluate the same transform and model with different numbers of input features and choose the number of features (amount of dimensionality reduction) that results in the best average performance.
LDA is limited in the number of components used in the dimensionality reduction to between the number of classes minus one, in this case, (10 – 1) or 9. The example below performs this experiment and summarizes the mean classification accuracy for each configuration.
# compare lda number of components with naive bayes algorithm for classification
from numpy import mean
from numpy import std
from sklearn.datasets import make_classification
from sklearn.model_selection import cross_val_score
from sklearn.model_selection import RepeatedStratifiedKFold
from sklearn.pipeline import Pipeline
from sklearn.discriminant_analysis import LinearDiscriminantAnalysis
from sklearn.naive_bayes import GaussianNB
from matplotlib import pyplot
# get the dataset
def get_dataset():
X, y = make_classification(n_samples=1000, n_features=20, n_informative=15, n_redundant=5, random_state=7, n_classes=10)
return X, y
# get a list of models to evaluate
def get_models():
models = dict()
for i in range(1,10):
steps = [('lda', LinearDiscriminantAnalysis(n_components=i)), ('m', GaussianNB())]
models[str(i)] = Pipeline(steps=steps)
return models
# evaluate a give model using cross-validation
def evaluate_model(model, X, y):
cv = RepeatedStratifiedKFold(n_splits=10, n_repeats=3, random_state=1)
scores = cross_val_score(model, X, y, scoring='accuracy', cv=cv, n_jobs=-1, error_score='raise')
return scores
# define dataset
X, y = get_dataset()
# get the models to evaluate
models = get_models()
# evaluate the models and store results
results, names = list(), list()
for name, model in models.items():
scores = evaluate_model(model, X, y)
results.append(scores)
names.append(name)
print('>%s %.3f (%.3f)' % (name, mean(scores), std(scores)))
# plot model performance for comparison
pyplot.boxplot(results, labels=names, showmeans=True)
pyplot.show()

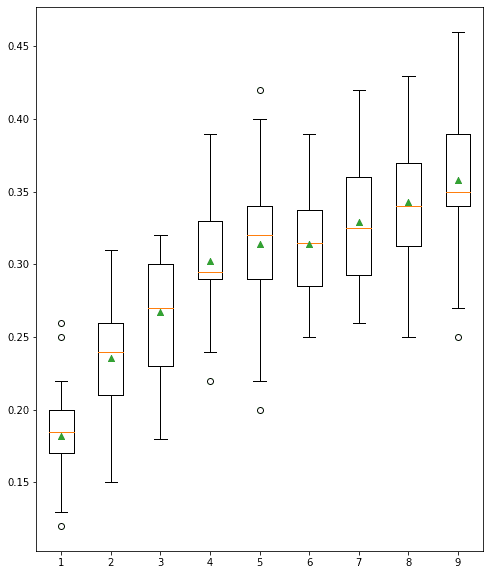

We can see a general trend of increased performance as the number of dimensions is increased. On this dataset, the results suggest a trade-off in the number of dimensions vs. the classification accuracy of the model. The results suggest using the default of nine components achieves the best performance on this dataset, although with a gentle trade-off as fewer dimensions are used.
