Wrapper Methods

A wrapper method needs one machine learning algorithm and uses its performance as evaluation criteria. This means, you feed the features to the selected Machine Learning algorithm and based on the model performance you add/remove the features. This is an iterative and computationally expensive process but it is more accurate than the filter method.

Sequential Feature Selection (SFS)

ℹ️

Sequential Feature Selection (SFS) can be either forward or backward

Forward-SFS is a greedy procedure that iteratively finds the best new feature to add to the set of selected features. Concretely, we initially start with zero feature and find the one feature that maximizes a cross-validated score when an estimator is trained on this single feature. Once that first feature is selected, we repeat the procedure by adding a new feature to the set of selected features. The procedure stops when the desired number of selected features is reached, as determined by the n_features_to_select parameter.

Backward-SFS follows the same idea but works in the opposite direction; instead of starting with no feature and greedily adding features, we start with all the features and greedily remove features from the set. The direction parameter controls whether forward or backward SFS is used.

In general, forward and backward selection do not yield equivalent results. Also, one may be much faster than the other depending on the requested number of selected features: if we have 10 features and ask for 7 selected features, forward selection would need to perform 7 iterations while backward selection would only need to perform 3.

SFS differs from RFE and SelectFromModel in that it does not require the underlying model to expose a coef or feature_importances attribute. It may however be slower considering that more models need to be evaluated, compared to the other approaches. For example in backward selection, the iteration going from $m$ features to $m - 1$ features using k-fold cross-validation requires fitting $m \times k$ models, while RFE would require only a single fit, and SelectFromModel always just does a single fit and requires no iterations.

Backward Elimination

As the name suggest, we feed all the possible features to the model at first. We check the performance of the model and then iteratively remove the worst performing features one by one till the overall performance of the model comes in acceptable range.

The performance metric used here to evaluate feature performance is pvalue. If the pvalue is above 0.05 then we remove the feature, else we keep it. Here we are using OLS model which stands for 'Ordinary Least Squares', used for performing linear regression.

#importing libraries
# We will be selecting features using the above listed methods for the regression problem of predicting the “MEDV” column.
from sklearn.datasets import load_boston
import pandas as pd
import numpy as np
import matplotlib
import matplotlib.pyplot as plt
import seaborn as sns
import statsmodels.api as sm
%matplotlib inline
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LinearRegression
from sklearn.feature_selection import RFE
from sklearn.linear_model import RidgeCV, LassoCV, Ridge, Lasso

#Loading the dataset
x = load_boston()
df = pd.DataFrame(x.data, columns = x.feature_names)
df["MEDV"] = x.target
X = df.drop("MEDV",1)   #Feature Matrix
y = df["MEDV"]          #Target Variable
df.head()

# 1 loop
#Adding constant column of ones, mandatory for sm.OLS model
X_1 = sm.add_constant(X)
#Fitting sm.OLS model
model = sm.OLS(y,X_1).fit()
model.pvalues

const      3.283438e-12
CRIM       1.086810e-03
ZN         7.781097e-04
INDUS      7.382881e-01
CHAS       1.925030e-03
NOX        4.245644e-06
RM         1.979441e-18
AGE        9.582293e-01
DIS        6.013491e-13
RAD        5.070529e-06
TAX        1.111637e-03
PTRATIO    1.308835e-12
B          5.728592e-04
LSTAT      7.776912e-23
dtype: float64

As we can see that the variable AGE has highest pvalue of 0.9582293 which is greater than 0.05. Hence we will remove this feature and build the model once again.

#Backward Elimination
cols = list(X.columns)
pmax = 1
while (len(cols)>0):
    p= []
    X_1 = X[cols]
    X_1 = sm.add_constant(X_1)
    model = sm.OLS(y,X_1).fit()
    p = pd.Series(model.pvalues.values[1:],index = cols)
    pmax = max(p)
    feature_with_p_max = p.idxmax()
    if(pmax>0.05):
        cols.remove(feature_with_p_max)
    else:
        break
selected_features_BE = cols
print(selected_features_BE)

['CRIM', 'ZN', 'CHAS', 'NOX', 'RM', 'DIS', 'RAD', 'TAX', 'PTRATIO', 'B', 'LSTAT']

Forward Selection

This method allows you to search for the best feature w.r.t model performance and add them to your feature subset one after the other. For data with $n$ features,

On the first round $n$ models are created with individual feature and the best predictive feature is selected.
On second round, $n-1$ models are created with each feature and the previously selected feature.
This is repeated till a best subset of $m$ features are selected.

from sklearn.datasets import load_diabetes
#  load the diabetes dataset
diabetes = load_diabetes()
X, y = diabetes.data, diabetes.target
print(diabetes.DESCR)

.. _diabetes_dataset:

Diabetes dataset
----------------

Ten baseline variables, age, sex, body mass index, average blood
pressure, and six blood serum measurements were obtained for each of n =
442 diabetes patients, as well as the response of interest, a
quantitative measure of disease progression one year after baseline.

**Data Set Characteristics:**

  :Number of Instances: 442

  :Number of Attributes: First 10 columns are numeric predictive values

  :Target: Column 11 is a quantitative measure of disease progression one year after baseline

  :Attribute Information:
      - age     age in years
      - sex
      - bmi     body mass index
      - bp      average blood pressure
      - s1      tc, total serum cholesterol
      - s2      ldl, low-density lipoproteins
      - s3      hdl, high-density lipoproteins
      - s4      tch, total cholesterol / HDL
      - s5      ltg, possibly log of serum triglycerides level
      - s6      glu, blood sugar level

Note: Each of these 10 feature variables have been mean centered and scaled by the standard deviation times `n_samples` (i.e. the sum of squares of each column totals 1).

Source URL:
https://www4.stat.ncsu.edu/~boos/var.select/diabetes.html

For more information see:
Bradley Efron, Trevor Hastie, Iain Johnstone and Robert Tibshirani (2004) "Least Angle Regression," Annals of Statistics (with discussion), 407-499.
(https://web.stanford.edu/~hastie/Papers/LARS/LeastAngle_2002.pdf)

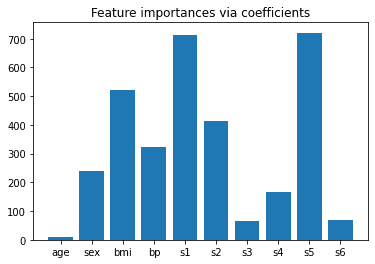

To get an idea of the importance of the features, we are going to use the RidgeCV estimator. The features with the highest absolute coef value are considered the most important. We can observe the coefficients directly without needing to scale them (or scale the data) because from the description above, we know that the features were already standardized. For a more complete example on the interpretations of the coefficients of linear models, you can refer to common pitfalls in the interpretation of coefficients of linear models (opens in a new tab).

import matplotlib.pyplot as plt
import numpy as np
from sklearn.linear_model import RidgeCV

ridge = RidgeCV(alphas=np.logspace(-6, 6, num=5)).fit(X, y)
importance = np.abs(ridge.coef_)
feature_names = np.array(diabetes.feature_names)
plt.bar(height=importance, x=feature_names)
plt.title("Feature importances via coefficients")
plt.show()

png

Now we want to select the two features which are the most important according to the coefficients. The SelectFromModel is meant just for that. SelectFromModel accepts a threshold parameter and will select the features whose importance (defined by the coefficients) are above this threshold.

Since we want to select only 2 features, we will set this threshold slightly above the coefficient of third most important feature.

from sklearn.feature_selection import SelectFromModel
from time import time

threshold = np.sort(importance)[-3] + 0.01

tic = time()
sfm = SelectFromModel(ridge, threshold=threshold).fit(X, y)
toc = time()
print(f"Features selected by SelectFromModel: {feature_names[sfm.get_support()]}")
print(f"Done in {toc - tic:.3f}s")

Features selected by SelectFromModel: ['s1' 's5']
Done in 0.007s

Selecting features with Sequential Feature Selection

Another way of selecting features is to use SequentialFeatureSelector (SFS). SFS is a greedy procedure where, at each iteration, we choose the best new feature to add to our selected features based a cross-validation score. That is, we start with 0 features and choose the best single feature with the highest score. The procedure is repeated until we reach the desired number of selected features.

We can also go in the reverse direction (backward SFS), i.e. start with all the features and greedily choose features to remove one by one. We illustrate both approaches here.

from sklearn.feature_selection import SequentialFeatureSelector

tic_fwd = time()
sfs_forward = SequentialFeatureSelector(
    ridge, n_features_to_select=2, direction="forward"
).fit(X, y)
toc_fwd = time()

tic_bwd = time()
sfs_backward = SequentialFeatureSelector(
    ridge, n_features_to_select=2, direction="backward"
).fit(X, y)
toc_bwd = time()

print(
    "Features selected by forward sequential selection: "
    f"{feature_names[sfs_forward.get_support()]}"
)
print(f"Done in {toc_fwd - tic_fwd:.3f}s")
print(
    "Features selected by backward sequential selection: "
    f"{feature_names[sfs_backward.get_support()]}"
)
print(f"Done in {toc_bwd - tic_bwd:.3f}s")

Features selected by forward sequential selection: ['bmi' 's5']
Done in 0.217s
Features selected by backward sequential selection: ['bmi' 's5']
Done in 1.142s

Bi-directional elimination (Step-wise Selection)

It is similar to forward selection but the difference is while adding a new feature it also checks the significance of already added features and if it finds any of the already selected features insignificant then it simply removes that particular feature through backward elimination. Hence, It is a combination of forward selection and backward elimination. In short, the steps involved in bi-directional elimination are as follows:

Choose a significance level to enter and exit the model (e.g. SL_in = 0.05 and SL_out = 0.05 with 95% confidence)
Perform the next step of forward selection (newly added feature must have p-value < SL_in to enter)
Perform all steps of backward elimination (any previously added feature with p-value > SL_out is ready to exit the model)
Repeat steps 2 and 3 until we get a final optimal set of features.

def stepwise_selection(data, target,SL_in=0.05,SL_out = 0.05):
    initial_features = data.columns.tolist()
    best_features = []
    while (len(initial_features)>0):
        remaining_features = list(set(initial_features)-set(best_features))
        new_pval = pd.Series(index=remaining_features)
        for new_column in remaining_features:
            model = sm.OLS(target, sm.add_constant(data[best_features+[new_column]])).fit()
            new_pval[new_column] = model.pvalues[new_column]
        min_p_value = new_pval.min()
        if(min_p_value<SL_in):
            best_features.append(new_pval.idxmin())
            while(len(best_features)>0):
                best_features_with_constant = sm.add_constant(data[best_features])
                p_values = sm.OLS(target, best_features_with_constant).fit().pvalues[1:]
                max_p_value = p_values.max()
                if(max_p_value >= SL_out):
                    excluded_feature = p_values.idxmax()
                    best_features.remove(excluded_feature)
                else:
                    break
        else:
            break
    return best_features

from sklearn.datasets import load_boston
import pandas as pd

boston = load_boston()
bos = pd.DataFrame(boston.data, columns = boston.feature_names)
bos['Price'] = boston.target
X = bos.drop("Price", 1)       # feature matrix
y = bos['Price']               # target feature
stepwise_selection(X,y)

['LSTAT',
 'RM',
 'PTRATIO',
 'DIS',
 'NOX',
 'CHAS',
 'B',
 'ZN',
 'CRIM',
 'RAD',
 'TAX']

Recursive feature elimination (RFE)

The Recursive Feature Elimination (or RFE) works by recursively removing attributes and building a model on those attributes that remain. It uses the model accuracy to identify which attributes (and combination of attributes) contribute the most to predicting the target attribute.

Given an external estimator that assigns weights to features (e.g., the coefficients of a linear model), the goal of recursive feature elimination (RFE) is to select features by recursively considering smaller and smaller sets of features. First, the estimator is trained on the initial set of features and the importance of each feature is obtained either through any specific attribute (such as coef, feature_importances) or callable. Then, the least important features are pruned from current set of features. That procedure is recursively repeated on the pruned set until the desired number of features to select is eventually reached.

# Feature Extraction with RFE
from pandas import read_csv
from sklearn.feature_selection import RFE
from sklearn.linear_model import LogisticRegression
# load data
url = "https://raw.githubusercontent.com/jbrownlee/Datasets/master/pima-indians-diabetes.csv"
names = ['preg', 'plas', 'pres', 'skin', 'test', 'mass', 'pedi', 'age', 'class']
dataframe = read_csv(url, names=names)
array = dataframe.values
X = array[:,0:8]
Y = array[:,8]

# feature extraction
estimator = LogisticRegression(solver='lbfgs')
selector = RFE(estimator, n_features_to_select=5, step=1)
selector = selector.fit(X, Y)

print("Num Features: %d" % selector.n_features_)
print("Selected Features: %s" % selector.support_)
print("Feature Ranking: %s" % selector.ranking_)

Num Features: 5
Selected Features: [ True  True False False False  True  True  True]
Feature Ranking: [1 1 2 3 4 1 1 1]

from sklearn.datasets import make_friedman1
from sklearn.feature_selection import RFE
from sklearn.svm import SVR

X, y = make_friedman1(n_samples=50, n_features=10, random_state=0)
estimator = SVR(kernel="linear")
selector = RFE(estimator, n_features_to_select=5, step=1)
selector = selector.fit(X, y)

print("Num Features: %d" % selector.n_features_)
print("Selected Features: %s" % selector.support_)
print("Feature Ranking: %s" % selector.ranking_)

Num Features: 5
Selected Features: [ True  True  True  True  True False False False False False]
Feature Ranking: [1 1 1 1 1 6 4 3 2 5]

RFECV performs RFE in a cross-validation loop to find the optimal number of features. A recursive feature elimination example with automatic tuning of the number of features selected with cross-validation:

import matplotlib.pyplot as plt
from sklearn.svm import SVC
from sklearn.model_selection import StratifiedKFold
from sklearn.feature_selection import RFECV
from sklearn.datasets import make_classification

# Build a classification task using 3 informative features
X, y = make_classification(
    n_samples=1000,
    n_features=25,
    n_informative=3,
    n_redundant=2,
    n_repeated=0,
    n_classes=8,
    n_clusters_per_class=1,
    random_state=0,
)

# Create the RFE object and compute a cross-validated score.
svc = SVC(kernel="linear")
# The "accuracy" scoring shows the proportion of correct classifications

min_features_to_select = 1  # Minimum number of features to consider
rfecv = RFECV(
    estimator=svc,
    step=1,
    cv=StratifiedKFold(2),
    scoring="accuracy",
    min_features_to_select=min_features_to_select,
)
rfecv.fit(X, y)

print("Optimal number of features : %d" % rfecv.n_features_)

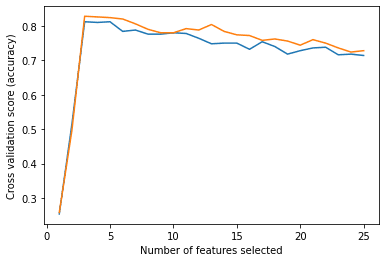

# Plot number of features VS. cross-validation scores
plt.figure()
plt.xlabel("Number of features selected")
plt.ylabel("Cross validation score (accuracy)")
plt.plot(
    range(min_features_to_select, len(rfecv.grid_scores_) + min_features_to_select),
    rfecv.grid_scores_,
)
plt.show()

Optimal number of features : 3

png
