Introduction

Sequence Model Motivation

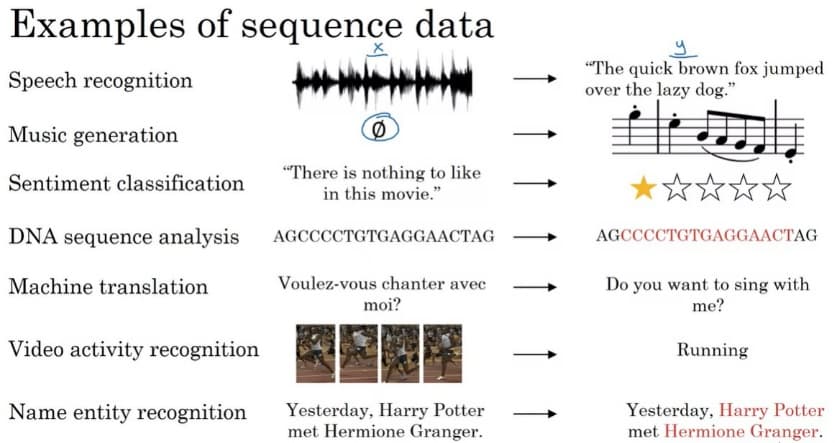

Sequence Models, such as RNNs and LSTMs, have dramatically revolutionized learning from sequences. Applications of sequence data include:

1. Speech Recognition (Sequence to Sequence):

   • $X$: Wave sequence
   • $Y$: Text sequence

2. Music Generation (One to Sequence):

   • $X$: Nothing or an integer
   • $Y$: Wave sequence

3. Sentiment Classification (Sequence to One):

   • $X$: Text sequence
   • $Y$: Integer rating (1 to 5)

4. DNA Sequence Analysis (Sequence to Sequence):

   • $X$: DNA sequence
   • $Y$: DNA labels

5. Machine Translation (Sequence to Sequence):

   • $X$: Text sequence (in one language)
   • $Y$: Text sequence (in another language)

6. Video Activity Recognition (Sequence to One):

   • $X$: Video frames
   • $Y$: Activity label

7. Name Entity Recognition (Sequence to Sequence):

   • $X$: Text sequence
   • $Y$: Label sequence
   • Useful for search engines to index different types of words within a text.

Each of these problems, with varying input and output formats, can be approached as supervised learning with labeled data $(X, Y)$ as the training set. $X$ and $Y$ can have different lengths, and sometimes only one is a sequence.

Notation

We will adopt the following notations throughout this section, taking Name Entity Recognition as our motivating example:

• $X^{(1)}$: "Harry Potter and Hermione Granger invented a new spell."

• $Y^{(1)}$: 1 1 0 1 1 0 0 0 0

  • Both sequences have a length of 9.
  • 1 indicates a name, while 0 indicates otherwise.

• $X^{(i)<t>}$: The $t$-th element in the input sequence of the $i$-th training example.

  • For example, $X^{(1)<1>} = \text{"Harry"}$, $X^{(1)<2>} = \text{"Potter"}$

• $Y^{(i)<t>}$: The $t$-th element in the output sequence of the $i$-th training example.

  • For example, $Y^{(1)<t>} = 1$, $Y^{(1)<2>} = 1$

• $T_x^{(i)}$: Length of the input sequence for the $i$-th training example.

  • Varies across different examples.

• $T_y^{(i)}$: Length of the output sequence for the $i$-th training example.

Representing Words:

In NLP (Natural Language Processing), a key challenge is how to represent words. There are two main approaches:

1. Vocabulary List:

   • Contains all target set words.
   • Example: [a, ..., And, ..., Harry, ..., Potter, ..., Zulu]
     • Each word has a unique index.
     • Sorted alphabetically.
   • Vocabulary sizes range from 30,000 to 50,000, with larger companies using up to a million.
   • Build a vocabulary list by analyzing texts for the most frequent words.

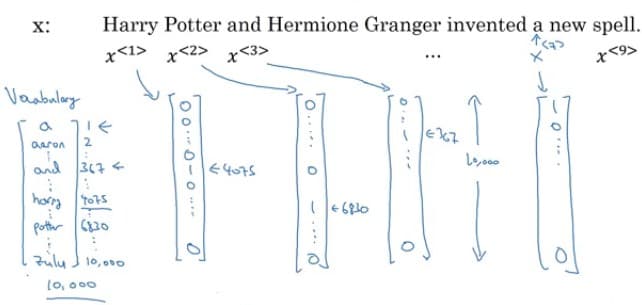

2. One-Hot Encoding:

   • Create a one-hot encoded vector for each word based on the vocabulary.
   • Handle unknown words with a special token, such as <UKN>, in the vocabulary.

Example:

The objective is to learn a mapping from this representation of $X$ to the target output $Y$ as part of a supervised learning problem.
